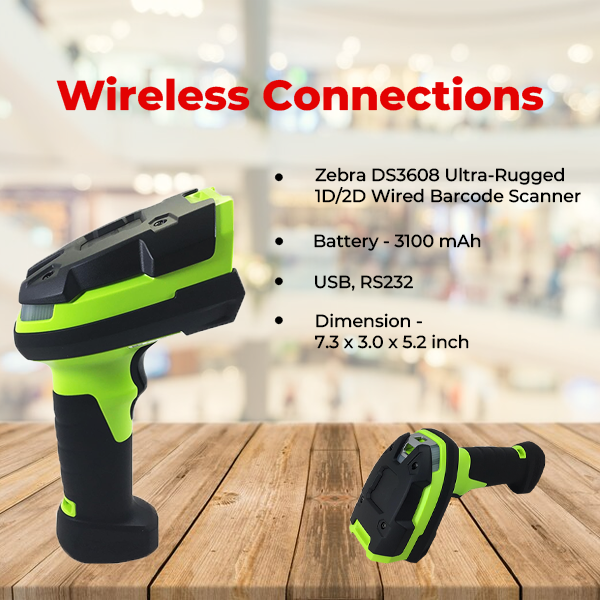

Zebra DS3678-SR Ultra-Rugged

Zebra DS3678-SR Ultra-Rugged

Zebra DS3678-SR is a rugged, high-performance barcode scanner designed for industrial and demanding environments. It is part of Zebra Technologies’ DS3600 series of scanners, which are known for their durability, reliability, and advanced scanning capabilities.

Features:

1. Scan Range: The “SR” in DS3678-SR stands for Standard Range, meaning this scanner is optimized for scanning barcodes at a typical range of up to 1 meter (3.3 feet). It can read 1D and 2D barcodes from near contact to medium range.
2. Rugged Design: The DS3678-SR is designed to withstand harsh conditions, including drops to concrete from up to 2.5 meters (8.2 feet). It’s also sealed to an IP67 rating, meaning it’s fully dustproof and can be submerged in water up to 1 meter deep for 30 minutes.
3. Advanced Scanning Technology: It uses Zebra’s SE4750SR scan engine, which can read a wide range of barcode types, including 1D, 2D, and even damaged or poorly printed barcodes. It is particularly known for its excellent ability to read barcodes from mobile screens and printed labels.
4. Wireless Connectivity: The DS3678-SR supports Bluetooth technology for wireless communication, making it ideal for environments where mobility is important. It can be connected to devices like computers, tablets, and smartphones.
5. Multiple Connectivity Options: Besides Bluetooth, it also supports USB, RS-232, and Wired connections, providing flexibility for various use cases.
6. Long Battery Life: If you’re using the wireless version, the DS3678-SR typically offers extended battery life, minimizing the need for frequent recharging.
7. Comfortable to Use: Its ergonomic design and lightweight form factor make it comfortable for extended scanning sessions.
8. Versatility: This scanner is widely used in applications such as retail, manufacturing, logistics, and transportation due to its fast, accurate barcode scanning in challenging environments.

Applications:

• Retail: Used in point-of-sale environments for fast, accurate scanning.
• Manufacturing & Warehousing: Helps streamline inventory management and asset tracking.
• Logistics and Shipping: Ensures quick and reliable barcode scanning in dynamic environments.

• Zebra’s DS3678-SR ultra-rugged scanner has unstoppable performance for extended range 1D/2D barcode scanning.
• The ultra-rugged DS3678-SR is practically indestructible and deployment and management are simple and fast.
• Connectivity: Bluetooth, Serial, USB-A.

The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the MANUALS section.

Confirm that you have the following equipment.

• DS3608-SR scanner
• Zebra proprietary USB cable
• Other host interfaces setup are described in the DS3608-SR Product Reference Guide (for example,  Keyboard Wedge Interface)

First Time Connection steps

1.    Connect the RJ41 end of the USB cable to the handle of the DS3608-SR scanner.

2.    Connect the USB end of the cable to your computer USB port.

3.    The DS3608-SR will power up with low, medium, high beeps

4.    Pull the DS3608-SR trigger and confirm a scan beam is present.

5.    Scan Return To Factory Defaults programming barcode from the DS3608 Quick Start Guide.

Note: When scanning a programming barcode from a screen/monitor, increase magnification to a minimum of 125%. This will ensure good barcode quality for a successful scan.

6.    To test sending a barcode, open a text document in an application such as Microsoft Word or Notepad.

Ensure that you can type into the text document using your keyboard.

Scan a product barcode.

7.    The scanned barcode will be displayed in the text document.

Keyboard Language (Country Code) Information

If Windows is configured for a region’s local keyboard and does not use an English keyboard layout, transferred barcode data may appear inaccurate.

Identify the language Windows uses and scan a compatible keyboard language configuration barcode (country code) USB Country Keyboard Types (Country Codes)

General Specifications:

• Model: Zebra DS3678-SR
• Type: Cordless/corded industrial barcode scanner
• Scanner Type: 1D/2D imager
• Connectivity:
  • Bluetooth® 4.0 (Class 1) with a range of up to 100m (328 feet) with Bluetooth 4.0-capable host
  • USB (Full-Speed USB) or RS-232 via cradle
  • Wired (optional)
• Compatibility: Works with Windows, Android, and iOS devices, and supports Bluetooth HID and SPP (Serial Port Profile)

Scanning Performance:

• Imager Engine: Zebra SE4750SR Standard Range 2D imager
• Scan Speed: Up to 60 frames per second
• Field of View:
  • Horizontal: 42° (standard range)
  • Vertical: 32° (standard range)
• Minimum Print Contrast: 30%
• Minimum Bar Code Width: 3 mil (0.076 mm)
• Barcode Types Supported:
  • 1D barcodes: UPC, EAN, Code 128, Code 39, Interleaved 2 of 5, Codabar, etc.
  • 2D barcodes: QR Code, Data Matrix, PDF417, Aztec, Micro QR Code, and more
• Depth of Field:
  • 1D Code 39: 0.25 in. to 12.5 in. (0.635 cm to 31.75 cm)
  • 2D QR Code: 0.25 in. to 6 in. (0.635 cm to 15.24 cm)
• Resolution: High-resolution scanning at up to 5 mils (0.13mm) for dense barcodes

Environmental Specifications:

• IP Rating: IP67 (dustproof and water-resistant, able to withstand submersion in water up to 1 meter for 30 minutes)
• Drop Spec: Withstands drops from up to 2.5 meters (8.2 feet) onto concrete
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% non-condensing

Battery and Power:

• Battery Type:
  • Rechargeable 2200 mAh Lithium-Ion battery
  • Battery Life: Typically 12 hours of continuous use (depends on usage and scanning volume)
• Charging Time: Typically around 4 hours (with cradle or direct charging)
• Charging Method: Through the cradle or USB charging (if wired version is used)

Physical Characteristics:

• Dimensions (L x W x H):
  • Scanner: 190 mm x 89 mm x 128 mm (7.48 in x 3.5 in x 5.04 in)
  • Weight: 299g (10.55 oz)
• Color: Black and Yellow (high-visibility design for industrial settings)

User Feedback & Indicators:

• Audio: Beep tones (adjustable volume)
• Visual: Multi-color LED (green for good read, red for error, etc.)
• Vibration: Provides tactile feedback during successful scans

Additional Features:

• Multi-Platform Support: Supports pairing with smartphones, tablets, or workstations across multiple platforms like Android, Windows, and iOS.
• Flexible Mounting: Can be used with a variety of docking stations, including desktop, vehicle, and wall mounts.
• Trigger Options: Manual or automatic scanning with adjustable settings for batch mode or continuous scanning.
• Zebra 3600 Series Software Support: The scanner supports Zebra’s 3600 Series platform for extended capabilities like customization and integration.

Certifications:

• Safety Certifications: CE, UL, FCC
• RoHS Compliant
