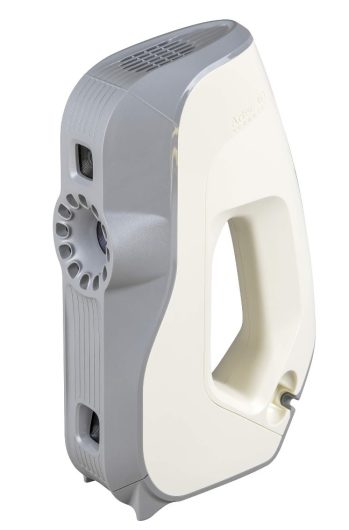

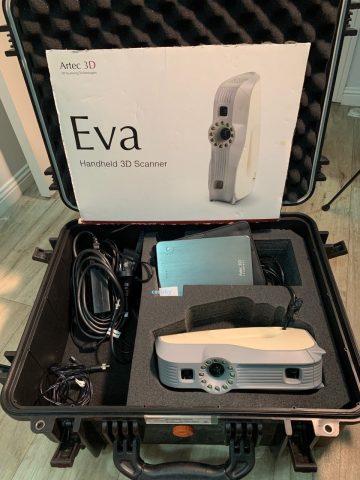

Artec Eva Laser 3D Scanner
The Artec Eva is a versatile and portable laser 3D scanner designed for capturing high-quality 3D models of various objects and environments. It’s particularly known for its speed and accuracy, making it suitable for applications in fields like industrial design, heritage preservation, and healthcare.
Key Features:
- High Resolution: The Eva captures fine details with a resolution of up to 0.5 mm, allowing for detailed scans of both small and large objects.
- Texture Capture: It can also capture color and texture information, producing full-color 3D models that are ideal for visualization and presentation.
- Lightweight and Portable: Its compact design makes it easy to transport and use in different environments.
- Real-time Processing: The scanner processes data in real-time, allowing users to see the results immediately as they scan.
- User-friendly Software: The included Artec Studio software facilitates easy editing, alignment, and export of 3D models in various formats.
Applications:
- Cultural Heritage: Scanning artifacts and monuments for documentation and preservation.
- Product Design: Creating prototypes and reverse engineering.
- Medical Applications: Capturing anatomical models for prosthetics or custom implants.
- Manufacturing: Quality control and inspection of parts.
Benefits of the Artec Eva 3D scanner:
- High Accuracy and Detail: It captures intricate details and features with a precision of up to 0.5 mm, making it ideal for applications that require high fidelity.
- Speed: The Eva can scan quickly, allowing for rapid data capture, which is especially beneficial in time-sensitive projects.
- Versatility: It’s suitable for a wide range of applications—from industrial design to medical modeling and cultural heritage preservation.
- Ease of Use: The user-friendly interface and real-time processing enable users to see results immediately, simplifying the scanning process.
- Portability: Its lightweight and compact design make it easy to transport and use in various settings, whether in the lab, the field, or on-site.
- Full-color Scans: The ability to capture color and texture enhances the realism of the 3D models, making them more useful for presentations and visualizations.
- Comprehensive Software: The Artec Studio software provides powerful tools for editing, aligning, and exporting scans, streamlining the workflow.
- Cost-Effective: By reducing the time and resources needed for 3D modeling and scanning, it can offer a good return on investment for businesses and professionals.
GENERAL SPECIFICATIONS
- 3D resolution: Up to 0.5 mm
- 3D point accuracy: Up to 0.1 mm
- 3D accuracy over distance: Up to 0.03% over 100 cm
- Colors: 24 bpp
- Texture resolution: 1.3 mp
- Scanning technology: Structured light
- Structured light source: Flashbulb (no laser)
- Working distance: 0.4 – 1 m
- Linear field of view: Closest range 214 x 148 mm
- Linear field of view: Furthest range 536 x 371 mm
- Angular field of view: 30 x 21°
- Video frame rate: Up to 16 fps
- Exposure time: 0.0002 sec
- Data acquisition speed: Up to 2 mln points/sec.
- Multi-core processing: Yes
OUTPUT FORMATS
- 3D formats: OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
- Formats for measurements: CSV, DXF, XML
COMMON SPECIFICATIONS
- Weight: 0.85 kg (1.9 lb)
- Dimensions: 262 x 158 x 63 mm
- Power consumption: 12V, 48W
- Interface: USB 2.0, USB 3.0 compatible
- Processing capacity: 40 mln triangles / 1 GB RAM
