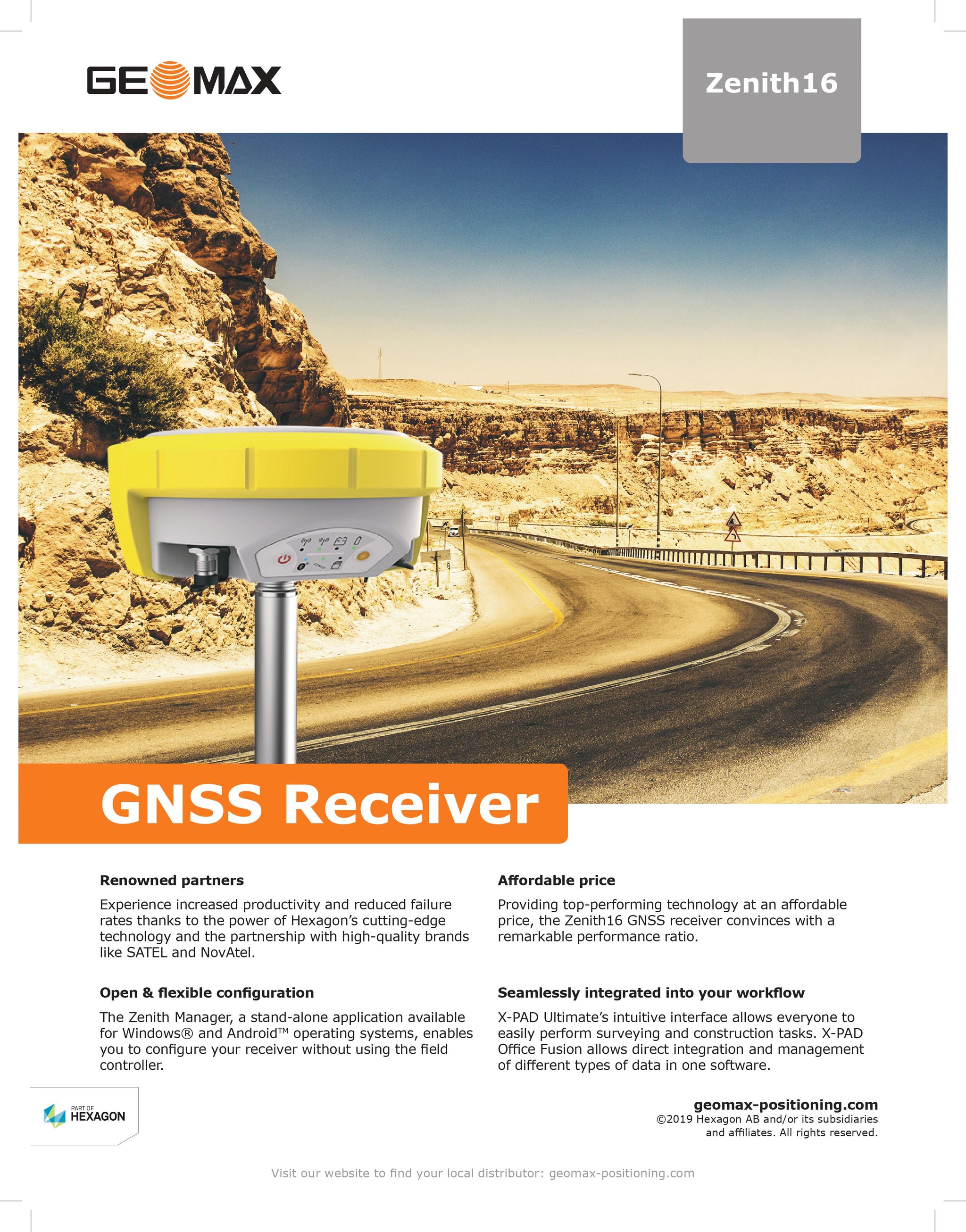

GeoMax Zenith16 GNSS

GeoMax Zenith16 GNSS receiver is a high-performance GNSS (Global Navigation Satellite System) device used for a variety of surveying and positioning applications. It supports multiple GNSS systems, including GPS, GLONASS, Galileo, and BeiDou, which enhances its accuracy and reliability in different environments. The Zenith16 is known for its advanced features like real-time kinematic (RTK) corrections, high precision, and robust connectivity options. It’s commonly used in tasks such as land surveying, construction, and geospatial data collection.

GeoMax Zenith16 multi-constellation GNSS receiver, Bluetooth, 181 channels, GPS+GLONASS+BeiDou+Galileo, dual-frequency, 5 Hz positioning rate. Including hard container, microSD card, USB cable, multilingual Quick Guide and USB-Stick.

Also includes:

• ZBA201 Li-Ion Batt. 2.6Ah 7.4V recharg.
• ZCH201 Charger for ZBA201 & ZBA400 Li-Ion batteries
• GEV192 AC/DC-Adapter GKL112/311 EU
• ZPC200, Telescopic Carbon Fibre and aluminium pole with 5/8“screw for GNSS. Extends to 2.5m.

Flex rover kit in addition to the above inclusions, the flex rover kit’s Zenith16 comes with an intrernal SATEL radio and a ZRA101 Gainflex UHF Antenna – frequency range 400-435 MHz

General Specifications

• Positioning Technology: Multi-constellation support (GPS, GLONASS, Galileo, BeiDou)
• Frequency: Dual-frequency (L1, L2) for improved accuracy
• RTK Accuracy: Typically within ±1 cm (horizontal) and ±2 cm (vertical)
• Initialization Time: Rapid initialization, often within seconds under good conditions

Performance

• Update Rate: High update rates (up to 20 Hz) for dynamic applications
• Data Output: Supports NMEA, RTCM, and proprietary formats

Connectivity

• Communication: Multiple communication options, including Bluetooth, Wi-Fi, and cellular for real-time data transfer
• GNSS Base Station Compatibility: Compatible with GeoMax base stations and third-party systems

Design

• Weight: Lightweight and portable design, making it suitable for field use
• Battery Life: Long battery life, often exceeding 10 hours of continuous operation

Environmental

• Operating Temperature: Typically ranges from -40°C to +65°C
• Water and Dust Resistance: Often rated IP67 for durability in harsh conditions

Software

• Data Management: Compatible with GeoMax software for data collection, processing, and visualization
