USB-SA124B – 12.4 GHz Spectrum
The Signal Hound USB-SA124B is a Software Defined Radio (SDR) optimized as a 12.4 GHz spectrum analyzer. It is compact, simple to use, and an effective troubleshooting tool for general lab use, engineering students, ham radio enthusiasts, and electronics hobbyists. Using recent innovations in RF technology, the Signal Hound has the sensitivity, accuracy and dynamic range you’d expect in a unit many times its cost.
The USB-SA124B is a spectrum analyzer designed for RF (radio frequency) analysis up to 12.4 GHz. It’s commonly used in telecommunications, broadcasting, and other fields requiring precise frequency measurements.
Features:
- Wide Frequency Range: Covers 9 kHz to 12.4 GHz, making it suitable for a variety of applications.
- Portable USB Interface: Connects easily to a laptop or PC for convenience and portability.
- Real-Time Analysis: Offers real-time spectrum analysis, allowing users to observe live signals.
- User-Friendly Software: Typically includes intuitive software for data visualization and analysis.
- High Sensitivity: Can detect weak signals, which is crucial for identifying interference or signal integrity issues.
Applications:
- Wireless Communication: Analyzing and optimizing wireless signals in cellular and Wi-Fi networks.
- Broadcasting: Ensuring compliance with regulatory standards for TV and radio broadcasting.
- R&D: Used in research and development to test and evaluate new RF devices.
- Interference Identification: Helps identify and troubleshoot interference in RF environments.
Benefits:
1. Portability
- Compact and lightweight, making it easy to carry for fieldwork or onsite measurements.
2. Real-Time Analysis
- Provides live signal observation, allowing for immediate detection of issues and quick troubleshooting.
3. Wide Frequency Range
- Covers a broad spectrum up to 12.4 GHz, suitable for various applications in wireless communication, broadcasting, and more.
4. User-Friendly Interface
- Intuitive software facilitates easy navigation and data analysis, even for users with limited experience.
5. High Sensitivity and Dynamic Range
- Capable of detecting weak signals and minimizing noise, crucial for accurate measurements in complex environments.
6. Cost-Effective Solution
- Combines essential features at a competitive price point, making it accessible for small businesses and individual professionals.
7. Versatile Applications
- Useful in multiple fields, including telecommunications, R&D, and RF troubleshooting, enhancing its value to users.
Specifications:
- Frequency Range: 9 kHz to 12.4 GHz
- Resolution Bandwidth (RBW): Adjustable (typically from 1 Hz to several MHz)
- Video Bandwidth (VBW): Adjustable to optimize signal visualization
- Dynamic Range: Usually around 90 dB, depending on the model
- Sensitivity: Generally in the range of -150 dBm or better
- Input Impedance: 50 ohms
- Max Input Level: Often around +30 dBm (or 1 W)
- Display: LCD or similar, typically with high resolution for clear visualization
- Connectivity: USB 2.0 or 3.0 for easy connection to a computer
- Power Supply: Powered via USB, making it convenient for portable use
- Software: Comes with compatible software for Windows, enabling real-time analysis and data logging
- Form Factor: Portable and compact, suitable for field use
The USB-SA124B is a compact, high-performance spectrum analyzer designed to provide detailed RF spectrum analysis from 9 kHz to 12.4 GHz. Powered by a USB interface, this instrument connects directly to a computer, providing a portable, cost-effective solution for a wide variety of applications in the fields of communications, RF testing, signal analysis, electromagnetic interference (EMI) testing, and more. It combines the power of a traditional benchtop spectrum analyzer with the convenience and portability of a USB-powered device.
Overview :
- Wide Frequency Coverage
The USB-SA124B offers an impressive frequency range of 9 kHz to 12.4 GHz, making it suitable for a broad range of applications, including testing and troubleshooting communication systems, satellite signals, radar, Wi-Fi, and other RF technologies. This wide frequency range ensures that the USB-SA124B can accommodate a variety of industry standards, including those used in cellular networks, Wi-Fi systems (2.4 GHz, 5 GHz), and more.
- USB-Powered and Portable Design
Unlike traditional standalone spectrum analyzers, which can be bulky and require AC power, the USB-SA124B is designed to be powered directly from a computer’s USB port. This design makes it incredibly lightweight and portable, ideal for field use or mobile applications where space and power efficiency are important. With the analyzer’s small form factor, technicians and engineers can easily carry it to remote sites for on-the-go testing.
- Real-Time Spectrum Analysis
The USB-SA124B allows for real-time spectrum monitoring, enabling users to view live data of their RF environment. This feature is essential for identifying signals, detecting interference, and troubleshooting issues in real time. Whether it’s for signal strength measurement or identifying frequency bands being used by various RF sources, the analyzer provides a detailed representation of the spectrum.
- High Dynamic Range and Sensitivity
Despite its compact size, the USB-SA124B delivers a good dynamic range, providing both sensitivity for detecting weak signals and the ability to handle strong signals without distortion. This makes it versatile for use in diverse testing scenarios, from very weak signals in a crowded RF environment to high-power signals from transmitters.
- Software Integration and PC Control
The USB-SA124B is fully controlled via software running on a connected computer, offering a user-friendly interface for configuring and analyzing the device. The software typically allows for advanced functionality such as real-time signal demodulation, time-domain analysis, automated scans, and detailed reporting. The flexibility of software control also allows for easy integration into automated testing setups, where the spectrum analyzer can be used to capture data and generate reports without manual intervention.
- Compact and Convenient Design for Field Applications
The device’s small footprint and USB power make it easy to transport and set up in the field, providing RF engineers and technicians with the ability to quickly perform signal analysis and troubleshooting at remote locations. Its low power consumption also means that it can be powered by portable power banks or laptops, ensuring that long-duration field tests can be conducted without worrying about battery life.

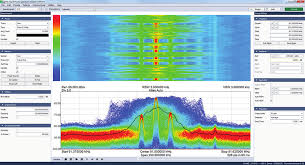

- Advanced Display Capabilities
The software typically offers advanced graphical displays that allow users to visualize RF spectra in various formats, such as linear or logarithmic scales, with the ability to zoom in on specific frequency ranges or adjust sweep settings to optimize measurements. The ability to customize the display enhances the user experience, allowing engineers to focus on the most relevant portions of the spectrum.
Applications:
- Communications System Testing: The USB-SA124B is an excellent tool for engineers working with wireless communication systems, including cellular networks (LTE, 5G), Wi-Fi, Bluetooth, ZigBee, and more. It enables the analysis of signal integrity, frequency interference, and power levels of transmitters and receivers.
- EMI/EMC Compliance Testing: As part of electromagnetic compatibility (EMC) testing, the analyzer can be used to measure unwanted emissions from electronic devices and ensure compliance with local and international regulatory standards for electromagnetic interference (EMI).
- Signal and Spectrum Monitoring: In areas with dense RF environments, the USB-SA124B helps identify signal sources, detect interference, and monitor the frequency usage in real-time. This makes it particularly useful for spectrum monitoring in both licensed and unlicensed bands.
- RF Component and System Development: Engineers working on the development of RF components, antennas, or circuits can use the USB-SA124B for testing and optimizing designs. It helps to troubleshoot issues like signal distortion, power losses, and improper frequency tuning during the development phase.
- Education and Research: The USB-SA124B’s portability and user-friendly design make it an ideal tool for educational institutions and research environments, where students and researchers can perform spectrum analysis without requiring large, expensive equipment.
- Field Troubleshooting and Service: Technicians can use the USB-SA124B in the field to quickly diagnose problems related to signal interference, missing or weak signals, and performance issues in both commercial and industrial environments.
Advantages:
- Affordable Price Point: Compared to traditional spectrum analyzers, the USB-SA124B is an affordable alternative, particularly for users who require portability and basic spectrum analysis features without the high cost of larger equipment.
- Compact and Lightweight: The device’s small size and lightweight nature make it ideal for portable, field-based applications, where space and ease of transport are important.
- Flexibility in Software Features: The integrated software provides an intuitive interface with powerful features, allowing for deep signal analysis, modulation, and demodulation capabilities, as well as the option for continuous signal monitoring and automated testing.
Limitations:
- Requires a Computer for Operation: Since it is a USB-powered device, the USB-SA124B requires a connected laptop or desktop computer to function. While this is not a significant drawback for many users, it may not be ideal in environments where a computer is not readily available or when standalone operation is needed.
- Lower Performance Compared to High-End Models: While the USB-SA124B offers solid performance for most general tasks, it may not deliver the same level of precision, bandwidth, or sensitivity as high-end, standalone spectrum analyzers, especially in highly demanding RF environments.
- Dynamic Range and Resolution: While the device offers a decent dynamic range for most use cases, professionals needing ultra-high resolution or extreme sensitivity may need to consider more expensive models that offer greater accuracy in capturing weak signals in challenging environments.
Conclusion:
The USB-SA124B Spectrum Analyzer offers an accessible, portable solution for a wide variety of RF analysis applications. Its broad frequency range, real-time spectrum analysis capabilities, and the convenience of USB power make it an excellent choice for professionals needing an affordable, easy-to-use tool for communications testing, EMI analysis, and field diagnostics. Though it may not replace high-end spectrum analyzers in every application, the USB-SA124B is a versatile and cost-effective solution for most general-purpose RF analysis tasks.
